GSM ACCESS Software manages users and their access to GSM-CONTROL or other GSM-controls
Price


 GSM access software is based a friendly Excel 2000 interface. It allows to record a set of people and access them to different doors or payments without any phone call payment.

• Add user name, personal id number, enabled/disabled, access start date, stop date, daily start time, daily stop time, access counter, maximum access count
• Delelet or disable user
• Add one time user ( e.g. serviceman)
• Each phone is recoded to Excel log table with date, time, access status, and possible reason for not access.
• If user has no account, the phone number is shown.
• If a user has a access granted,  the other phone is made to control GSM to open door. No payments for either phone calls
• Onetime setup sheet for system settings.
• No database needed, just on EXCEL sheet and other help sheet.
• Control by 1 remote GSM unit using the same GSM modem 2.  local electric lock ( 5 sec relay pulse to to lock) 3. serial control relay
• GSM access software can run in W9x,NT4, W2k and XP. In XP software can  run as a separate user task.

LOG sheet :

Applications:

• Access to company doors and support for a company secretary for finding people and their current contact phones
• Pay system for body building place or car washing
• A company supported hobby activities for games
• Evening paper automata
• Serial Relay

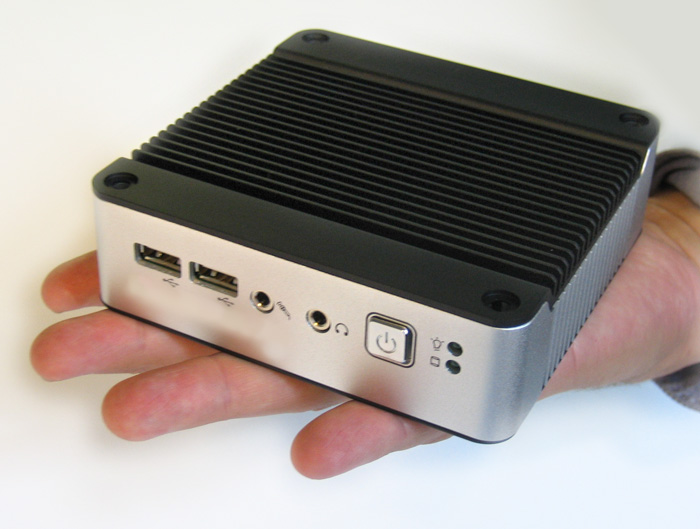

A suitable PC can be e.g. eBox  128MB ram 10/100MB Lan, parallel port, 3 USB

GSM ACCESS Software : euro 400

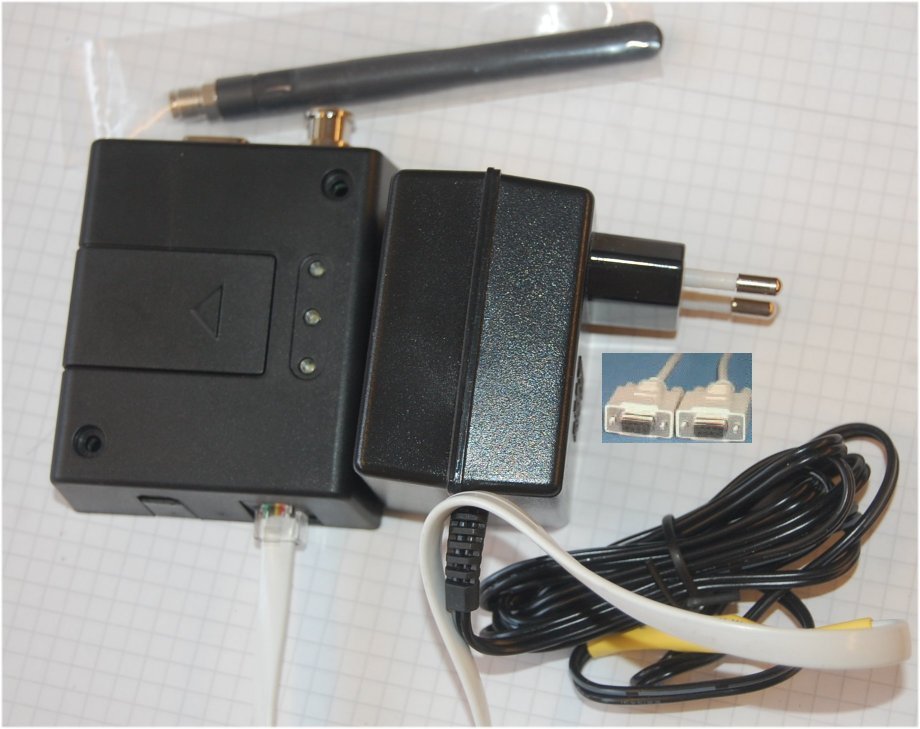

A suitable hardware  GSM-modem + power supply+ cable euro 400
