PROBYTE GSM ALARM #6
Other GSM-equipment
RemoteSmart


PROBYTE  GSM ALARM #6 works as a remote alarm, remote temperature logger and a remote controller using
Remote door lock for clubs.  Remote reset device for GSM/Internet operators and electrical utilities.
SMS-messages and phone  identification technique  to save commutations cost.
A verification SMS-message is sent if required  for each command.
Read the operation manual.

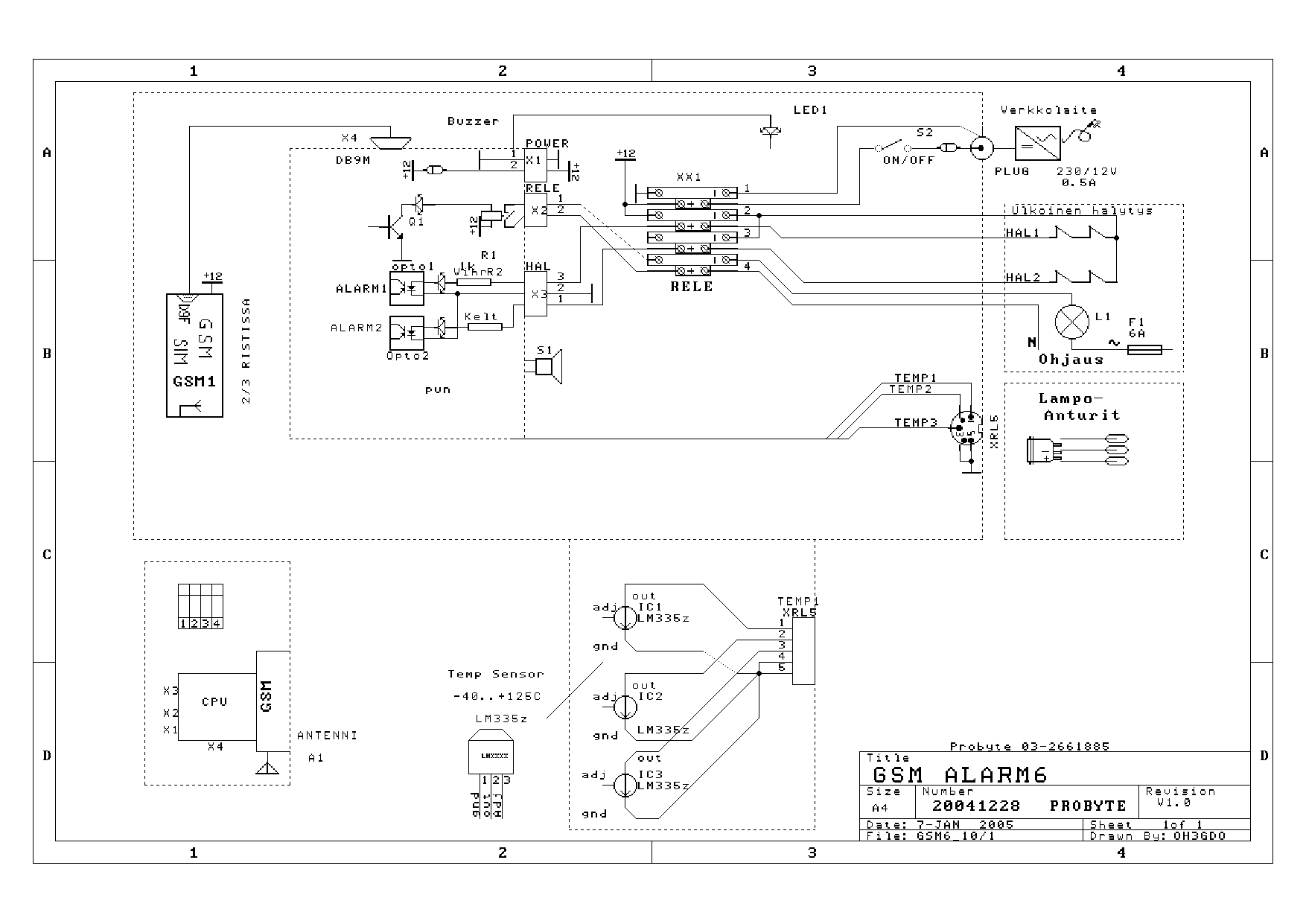

Look schematic diagram


Alarm input options

0-6  alarm inputs like temperature low or burglar

0-3 temperature sensors ( voltage , moistures, vater level etc. possible)

Start delay 45 seconds, time to leave the place .

Alarm operations

The alarms stats when alarm input #1 is open 3 seconds. First SMS message (" Freeze  Alarm ")  is send then 2 minute phone call  to  alarm receiver #1
The GSM phone  show "Cottage temperature alarm" rings
Each Alarm an its own SMS and phone number

Output options

1- 4 relays open doors or controls heater on  without communication costs.


Alarm message and phone ring receivers and people who can use remote control can be added or removed remotely.
Normal SMS control for RELAY1   ATREL1  is ON-message and  ATREL10 is OFF-message
Operation without phone costs

Phone ring operates a relay for predefined time, no phone cost.
The operation time is controlled by a SMS -message 1s -18 hours.
Only the users who are qualified can use the relay ( or door access).  This is very convinient for heating the car in mornings or to to operate remote pump when water is low. This machine to machine ( M2M) application is used in golf course Lapua/Finland
Remote settings

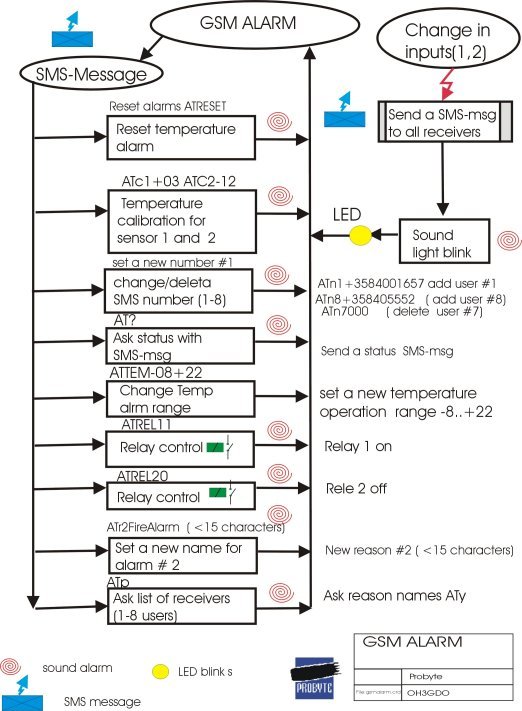

All the operations and tests are remote controlled by SMS-message.
e.g. You can ask a list of alarm receivers to your own phone .

 Power supply
 230V/12DC 0.5A)power plug included. Can used with 12V battery ( not provided) .

Operation and operation lights

1 Turn power on
2  Wait 45seconds  LED blinks 1Hz
3  Normal operation : 50ms blink  in once in 4 second.
4  Alarm start ( #1  input open 3 second ) . LED blinks 10 times, send  first SMS-message and make first phone call ti number #1
5  Alarm reset  When user makes a phone call to the device and head ring,  the alarm device resets alarm and blinks the 10 times   .. Ready for next alarm.
6  New alarm. The old alarm must be in normal state ( close input)  before a new alarm start even it is reset. Hard reset : open power supply for one second.
7  If  the alarm is not on , the phone call start a relay operation e.g. 3600 seconds.

Alarm Sensors

Any sensor which has NC ( normally connected ) input is suitable for GSM ALARM6




Price  GSMALARM #6  440Euro  Vat  22%
  Includes:

A gsmalarm  indoor case
A GSM modem +indoor antenna
A power supply  230AC/12 V DC 0.5A.
1 alarm input.
1  control relay 10A 230V contacts.  This in not intended for high current  applications, please use a separate high current contactors.
  e.g. SMS-message  ATREL11 operate relay1 on  and  ATREL10 operate relay1 off
Operation manual
Delivery and a guarantee according NL92 ( Common Industrial Sales Conditions in Finland)

Option 1 :  2 alarm inputs  0-12V   Add 40Euro
Option 2    3 pc  alarm inputs   12-230VAC/DC  optoisolated inputs   Add 150 Euro
Option 3   Temperature logger 3 channels. Automatic SMS-messages to  GSM phone e.g. once/day or in alarm situation.   Add 200 Euro
Option 4   Battery operated device. A GSM phone can be configured to off  when not needed. 7Ah 1V battery included   Add 70 Euro.  Charger   Add 50 Euro
Option 5  Remote control by a phone ring . Time can adjusted by a SMS-message 1s..  18 hours .  e.g. Message  AT(3600)w adjusts time to 1 hour and starts relay time (with  w-command).       Add 50 Euro
Option 6  A dust proof case   Add 40 €

Click picture to get better resolution

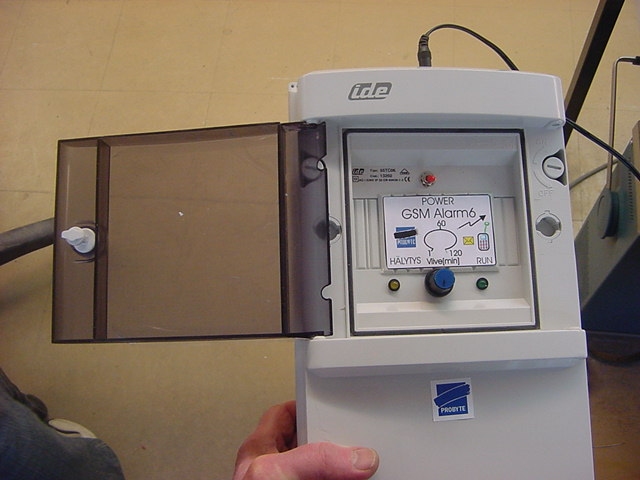

Below is GSMALARM6 with small case for indoor installation




Bellow is GSMALARM6FE for boats  1 input , 1 relay ( mast light or heater control)




Email
PROBYTE Nirvankatu 31 33820 Tampere puhelin 03-2661885
